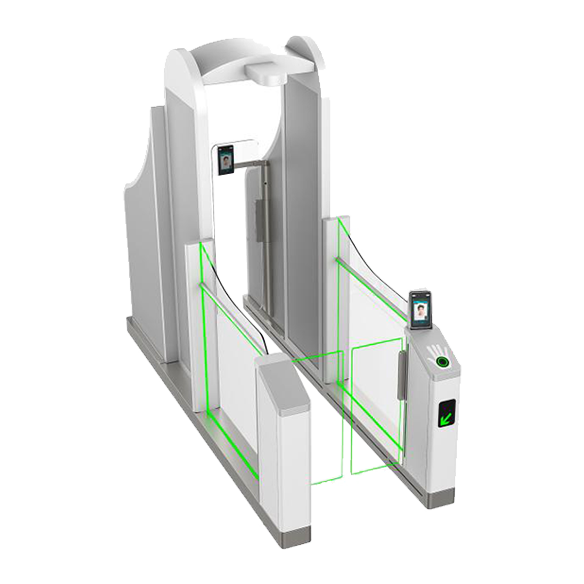

Automatic Gate Entry and Exit (Double-door)
Automatic Gate Entry and Exit (Double-door)

Automatic Gate Entry and Exit (Double-door)

Main Equipment
Input VoltageAC 220V±10% 50Hz±5%Equipment Material304 Stainless Steel + High Quality Cold Rolled Steel Plate
Rated Power Consumption1100WChannel Width＜1120 mm (Entrance)
Operating Temperature-10~50℃ (Indoor)Installation EnvironmentIndoor
Storage Temperature-20~60℃ (Outdoor)Communication InterfaceNetwork
Relative Humidity10~90% RH (Non-condensation)Gate TypeSwing Gate
Reference Size3200*1120*2600 mm
Control Terminal
CPUQuad-core ARM Cortex A7 32-bitHard Driver64GB Nand Flash
RAM1G LPDDR3Rated Power24W
InterfaceInput Power Dc12v/2a, Support Wifi/bluetooth, 4g Wireless Communication, Dual Ethernet Interface, Support Usb2.0 Host, Support Tf Card Interface, Expandable Rs485, Rs232, Input And Output Io Port
Infrared Temperature Measurement Module
Accuracy±0.3℃ @ 32~42 ℃Measuring Cycle≥ 0.1S
Resolution16*4,16*12,32*24 (Optional)Measurement Range32~42℃ (Human Body); -20~30℃ (Object)
Measuring Distance2~3 m
Metal Security Inspection Door
Sensitivity Level0~100Detection Location6~18th District
Frequency Setting0~100Power Consumption＜30W
Metal DetectionMetals Weighing More Than 30 Grams, Such As Copper, Aluminum, Zinc, Or Controlled Knives And Guns
Face Recognition Terminal
Identifying PatternsFace Capture, Body Detection, Face And Body Detection
Front-end Equipment Deployment MdoeInlaid Installation, Column Installation
Video Anti-tailgating
Identifying PatternsFace Capture, Body Detection, Face And Body Detection
Front-end Equipment Deployment ModeHoisting
